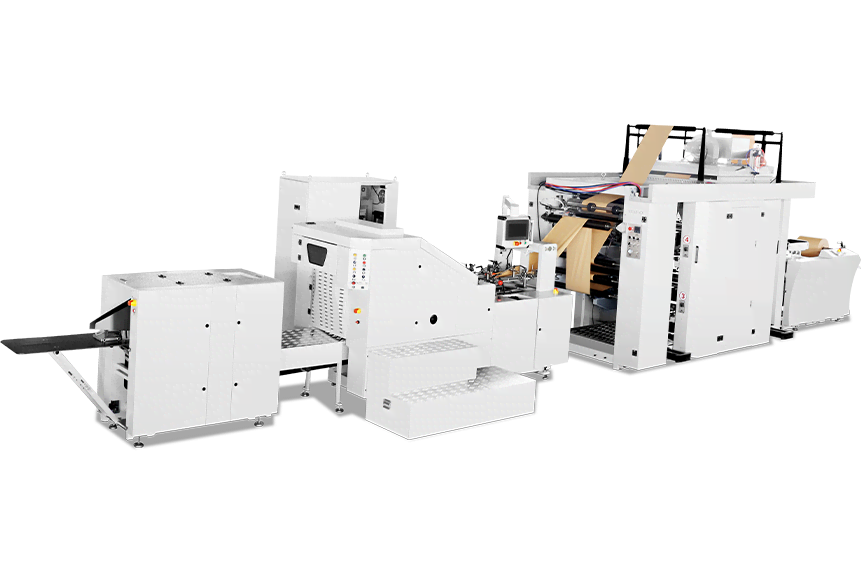

RZFD-190 with Printing Inline
Quality Assurance
Ruizhi Machinery square bottom paper bag machine, committed to international standards, ensures our equipment delivers unparalleled quality and performance, consistently setting the benchmark in the industry.
High Safety Standards
Ruizhi Machinery square bottom paper bag machine, with a full-cover safety shield and automatic shutdown alarm, ensures safe operation while protecting the product from external interference.
Efficient Production
Ruizhi Machinery square bottom paper bag machine, with its automated production line, produces 220 square bottom paper bags per minute, significantly reducing labor costs and enhancing productivity.
Modular Design
Ruizhi Machinery square bottom paper bag machine, with the independent operation and coordination of modules (feeding, forming, and sealing) minimize downtime, streamline production, and ensure fast, efficient paper bag manufacturing.

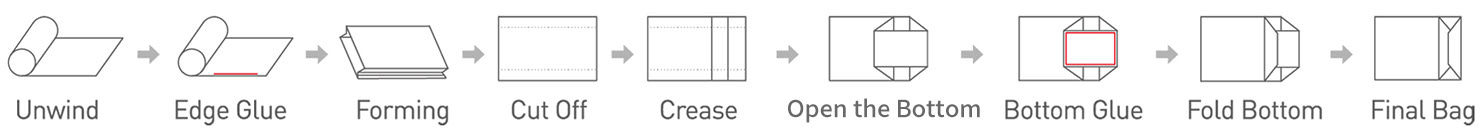

Paper Bag Forming Drawing
Specifications
|
Model |
RZFD-190 with Printing Inline |
|
|
Cut-off Length |
190-370mm |
7.5-14.6in |
|
Printing Length |
190-365mm |
7.5-14.2in |
|
Bag Width |
80-190mm（65-190mm） |
3.1-7.5in |
|
Bag Bottom Width |
50-105mm (45-105mm) |
2-4.1in |
|
Basis Weight |
45-130g/㎡ |
|
|
Machine Speed |
30-260pcs/min |
|
|
Bag Making Speed |
30-230pcs/min |
|
|
Roll Width |
280-640mm |
11-25.2in |
|
Roll Diameter |
1500mm |
59in |
|
Core Inner Diameter |
76mm |
3in |
|
Cutting Knife |
Sawtooth Cutting |
|
|
Printing Area |
||
|
Printing Width |
200-640mm |
7.9-25.2in |
|
Printing Length |
230-500mm (Two Bags within 190-230mm) |
9.1-19.7in (Two Bags within 190-230mm) |
|
Printing Speed |
5-86m/min |
|
|
Color Accuracy |
≤±0.20mm |
|
|
Plate Thickness |
2.28mm+0.38mm |
|
|
Required Compressed Air |
More than 0.36m3/min, 0.5-0.8MPa |
|
|
Electrical Specifications |
380V Three-Phase Four-Wire 23kW |
|
|
Machine Weight |
8300kg |
|
|
Machine Dimensions |
10500x3200x2200mm |
492×87×110in |
